Non-Mortise Hinges
Surface-mount cabinet hinges for MH and RV interiors. Mount directly to the face frame and door edge — no chiseling, no recess routing, no jig setup.
13503″ Non-Mortise Hinge
Removable PinReversible 3″ × 3½″ leaf with a removable pin. Pull the pin to lift the door off the cabinet for paint, repair, or warranty service without disturbing the screws. Single SKU covers hinge-left and hinge-right openings.
Size3″ × 3½″
PinRemovable
LeafReversible
MountNon-Mortised
| Finish | SKU | ||
|---|---|---|---|
| AB | Antique Brass | 1350-AB | |
| MB | Matte Black | 1350-MB | |
| OB | Oil Rubbed Bronze | 1350-OB | |
| PB | Polished Brass | 1350-PB | |
| SN | Satin Nickel | 1350-SN | |

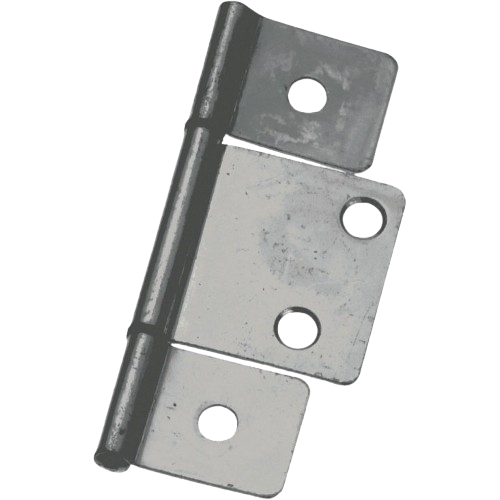

1309-EXT2¾″ Extended Non-Mortise
Extended · Fixed PinExtended-throw variant of the 1309 with a 2¾″ × 3½″ leaf. The longer wing clears thicker face frames and offset stiles common in slide-room cabinetry. Fixed pin, reversible orientation.
Size2¾″ × 3½″
PinFixed
LeafReversible
MountNon-Mortised
| Finish | SKU | ||
|---|---|---|---|
| MB | Matte Black | 1309-EXT-MB | |
| SB | Satin Brass | 1309-EXT-SB | |
| SN | Satin Nickel | 1309-EXT-SN | |
13092½″ Non-Mortise Hinge
Fixed PinThe standard 2½″ × 3½″ non-mortise hinge for MH/RV cabinet doors. Fixed pin, reversible left or right. Stocked in the broadest finish range of the line to match interior hardware packages.
Size2½″ × 3½″
PinFixed
LeafReversible
MountNon-Mortised
| Finish | SKU | ||
|---|---|---|---|
| AB | Antique Brass | 1309-AB | |
| MB | Matte Black | 1309-MB | |
| SB | Satin Bronze | 1309-SB | |
| SN | Satin Nickel | 1309-SN | |
| WEN | Weathered Nickel | 1309-WEN | |
