Frame Mounted Hinges

Self-closing hinges for face-framed cabinetry. Five active product families — all NKBA-compliant and tested to 50,000 cycles.

205 Series

Self-Closing / Surface

Spring-loaded surface-mount frame hinge designed for face-framed cabinet doors with a 3/8" reveal. The standard 205 ships in five finishes; for 3/8" inset applications, order the NO. 105 variant.

MountFrame ActionSelf-Close Reveal3/8" Leaf2.756" × 1.5" Cycles50,000 StandardNKBA 3/8" InsetOrder NO. 105
NO. 205 self-closing frame hinge
SKU Finish
205-ABAntique Brass
205-MBMatte Black
205-SISwedish Iron
205-SNSatin Nickel
205-WWhite

1214 Series

Self-Closing / Half-Wrap

Half-wrap self-closing frame hinge with 32mm boring — a cleaner installation than surface mount when the face frame allows it. Available in three finishes.

MountFrame ActionSelf-Close WrapHalf-Wrap Bore32mm Cycles50,000 StandardNKBA

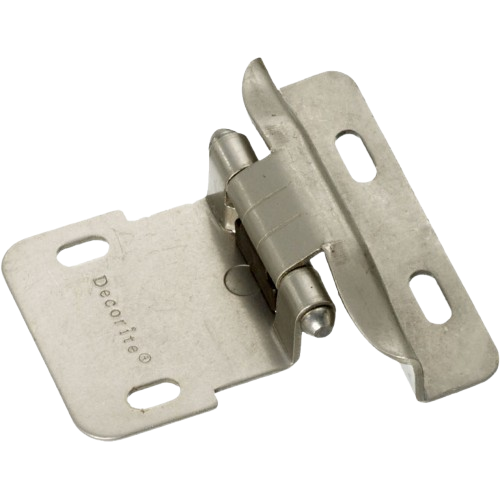

NO. 1214 self-closing half-wrap frame hinge
SKU Finish
1214-ABAntique Brass
1214-PBPolished Brass
1214-WWhite

520 Series

Self-Closing / Surface

Same surface-mount construction profile as the 205 series, supplied in polished brass only. For 3/8" reveal face-frame doors.

MountFrame ActionSelf-Close Reveal3/8" Leaf2.756" × 1.5" Cycles50,000 StandardNKBA

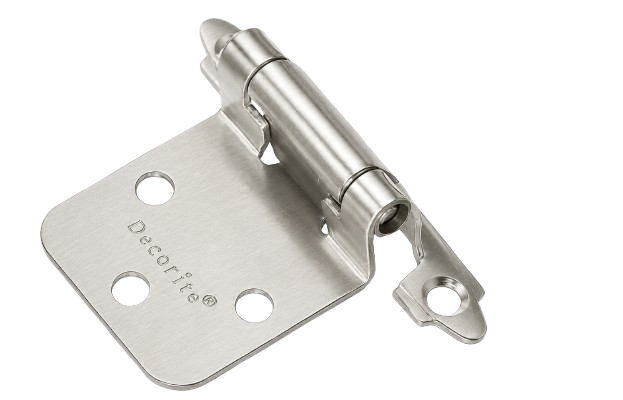

NO. 520 self-closing frame hinge
SKU Finish
520-PBPolished Brass

TP-16FS

Self-Closing / Surface

Self-closing surface-mount frame hinge offered across seven finishes — the broadest finish range in our self-closing program. Designer-grade option for projects that need finish flexibility.

MountFrame ActionSelf-Close Cycles50,000 StandardNKBA

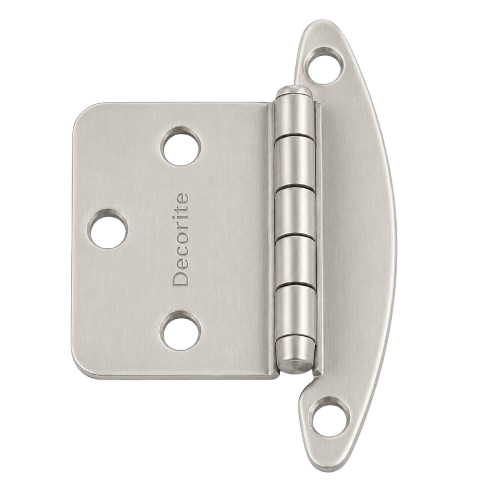

NO. TP-16FS self-closing frame hinge
SKU Finish
TP-16FS-SNSatin Nickel
TP-16FS-ABAntique Brass
TP-16FS-MBMatte Black
TP-16FS-MWWeathered Nickel
TP-16FS-NINickel
TP-16FS-PBPolished Brass
TP-16FS-VBVenetian Bronze

TP-516FS

Self-Closing / Surface

Companion to the TP-16FS in an alternate profile. Same self-closing action and seven-finish offering.

MountFrame ActionSelf-Close Cycles50,000 StandardNKBA

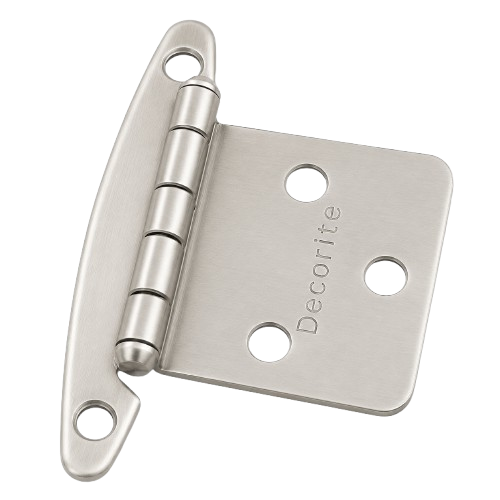

NO. TP-516FS self-closing frame hinge
SKU Finish
TP-516FS-SNSatin Nickel
TP-516FS-ABAntique Brass
TP-516FS-MBMatte Black
TP-516FS-MWWeathered Nickel
TP-516FS-NINickel
TP-516FS-PBPolished Brass
TP-516FS-VBVenetian Bronze
